【LCD Writing Pad】How to set the rotation angle correctly?

When using LCD Writing Pad, the default rotation angle is 0°, where the buttons are on the left.

You can open the Tablet control panel by clicking on the Tablet icon in the system tray at the bottom right corner, and modify the rotation angle of LCD Writing Pad.

Please follow these steps to adjust the rotation angle of LCD Writing Pad:

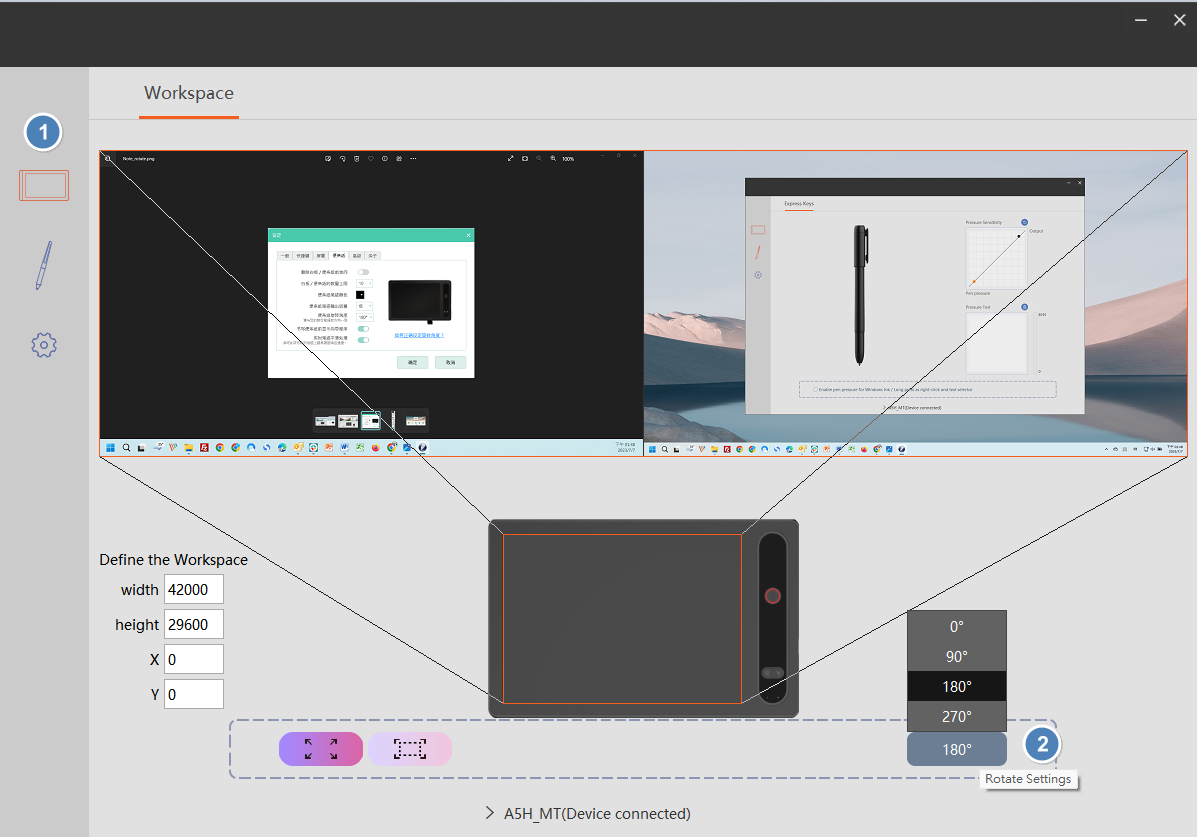

1. Click on this icon to enter the writing pad settings.
2. Find the rotation angle in the lower right corner, which will be 0° by default. After clicking, a menu will pop up, listing other angles that can be selected. In this example, we choose 180°.

After successfully adjusting the angle of the writing pad, please rotate the writing pad to the angle you choose to use.

You also need to adjust the rotation angle of the sticky notes to ensure that the writing direction of the sticky notes is correct. Please open the settings window on the toolbar:

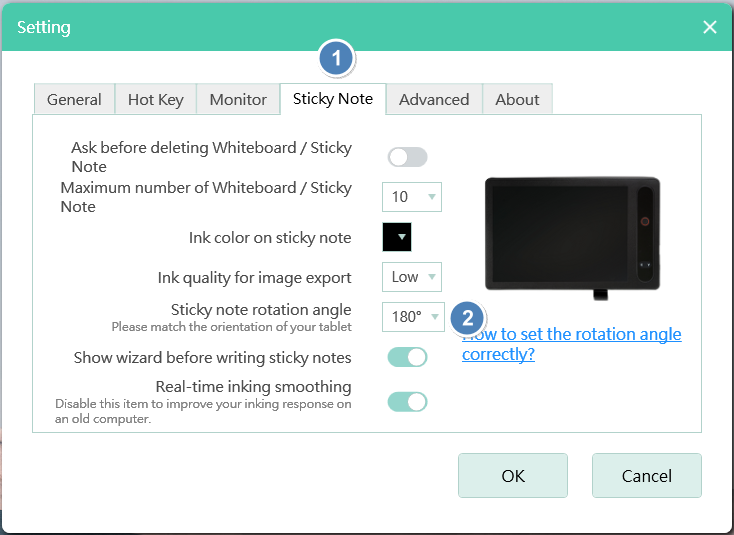

In the settings window, please follow these steps:

1. Click on the "Sticky Note" tab
2. In "Sticky note rotation angle", select the same rotation angle as previously set. In this example, it is 180°.

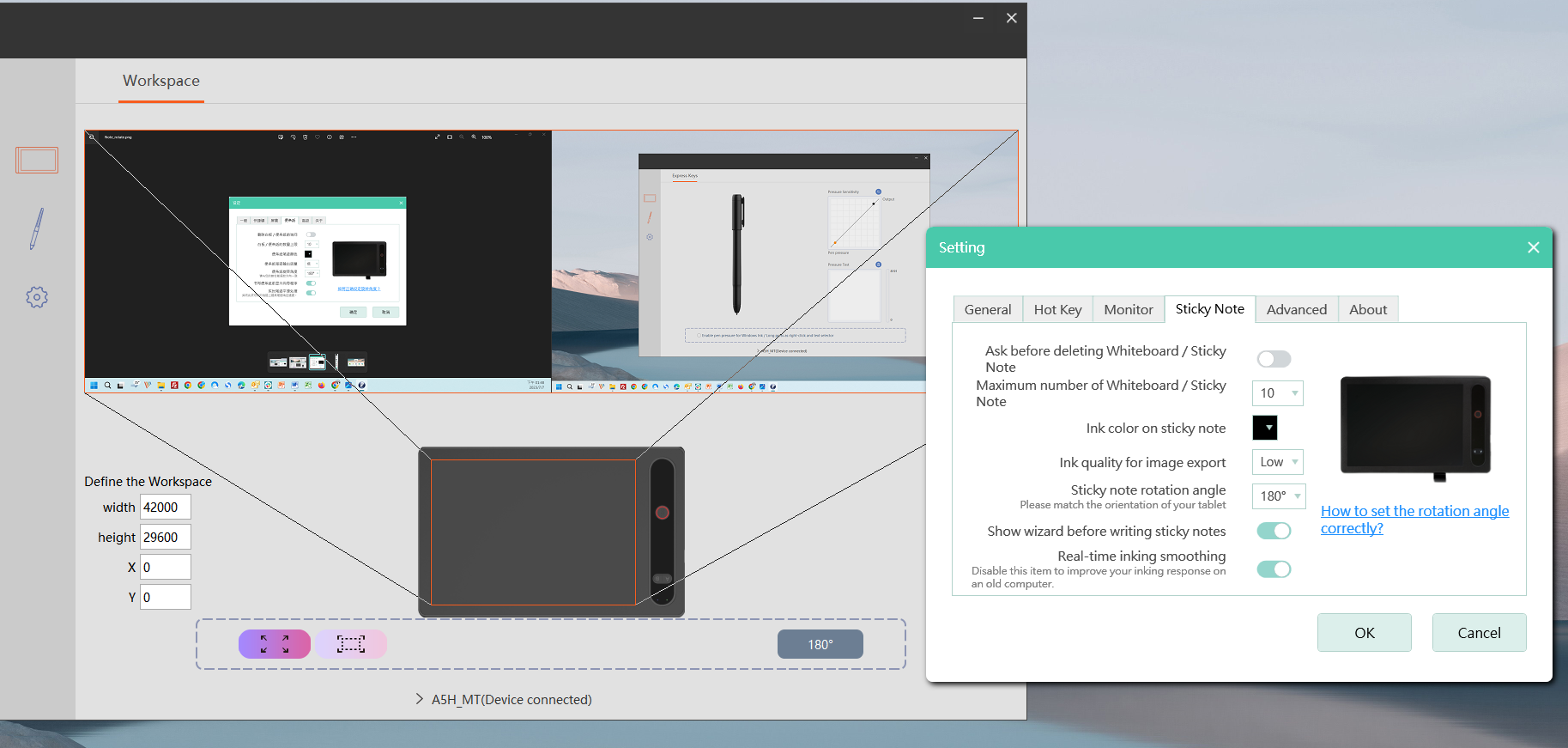

Please make sure that these two places have consistent rotation angles:
